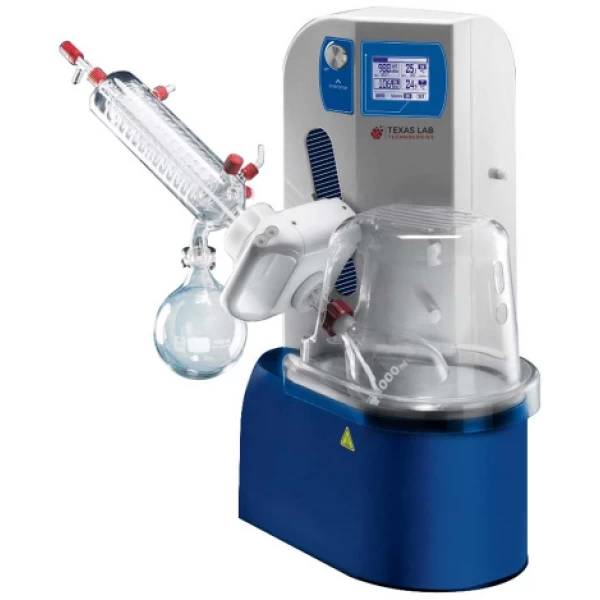

Slanting Rotory Evaporator TE-310
Slanting Rotory Evaporator TE-310 come with a slanting coiled condenser. Integrated with heating bath and vacuum controller with USB interface feature, central display for automatic distillation, and ramp programming.
The high-class STEROGLASS sealing system suitable for vacuum-tight anti-corrosion seal without gaskets and other materials protect from any damage during operating.
This sealing system is a standard feature in all strike models and can be used with all types of glassware. Ensure easy assembly and dismounting operations, provide safety, compliance with the existing directive concerning equipment construction and electromagnetic compatibility.
The microprocessor is multi-programmable and GLP compliant. Offer effective and efficient evaporation of solvents that are perfect for a single sample. The vacuum improves distillation and reduces boiling temperature.
The main constituents of a rotary evaporator system are the water bath or oil bath rotary evaporator, glassware, vacuum pump, safety shield, collecting flask, evaporating flask. The evaporating flask rotates in the water bath, allowing for additional surface area and cooler evaporation.
[print_product id = “jQuery (” # post_ID “). Val (); PRODUCT_ID ”mode =” pdf ”text =” DOWNLOAD SAMPLE SHEET ”]
Description
Slanting Rotory Evaporator TE-310 come with a slanting coiled condenser. Integrated with heating bath and vacuum controller with USB interface feature, central display for automatic distillation, and ramp programming.
The high-class STEROGLASS sealing system suitable for vacuum-tight anti-corrosion seal without gaskets and other materials protect from any damage during operating.
This sealing system is a standard feature in all strike models and can be used with all types of glassware. Ensure easy assembly and dismounting operations, provide safety, compliance with the existing directive concerning equipment construction and electromagnetic compatibility.
The microprocessor is multi-programmable and GLP compliant. Offer effective and efficient evaporation of solvents that are perfect for a single sample. The vacuum improves distillation and reduces boiling temperature.
The main constituents of a rotary evaporator system are the water bath or oil bath rotary evaporator, glassware, vacuum pump, safety shield, collecting flask, evaporating flask. The evaporating flask rotates in the water bath, allowing for additional surface area and cooler evaporation.
Additional information
| Weight | 26 kg |
|---|---|
| Dimensions | 69 × 79 × 43 cm |
| Model |
TE-310 |
| Capacity |
Bath Capacity:-5 L Evaporating Flasks Capacity:-1000 ml (optional: 50 to 2000 ml) Collecting Flasks Capacity:- 1000 ml (optional: 250 to 2000ml) |
| Speed |
20 to 280 rpm |
| Temperature Range |
185℃ |
| Bath Material |
PTFE |
| Display |
LCD |
| Interface |
USB |
| Power |
1200W |
| Dimension |
690x790x430 mm |
| Weight |
26 kg |
| Electrical Requirement |
AC 230 V/50Hz |
| Catalogue No. |
260150502 |
Specifications
Technical Data
