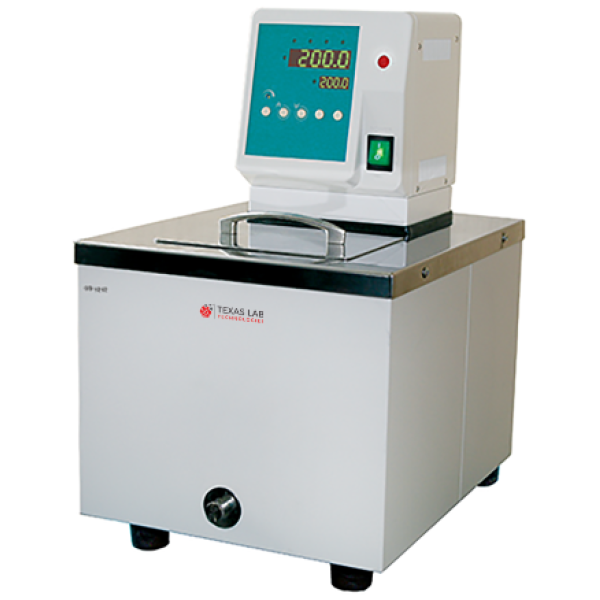

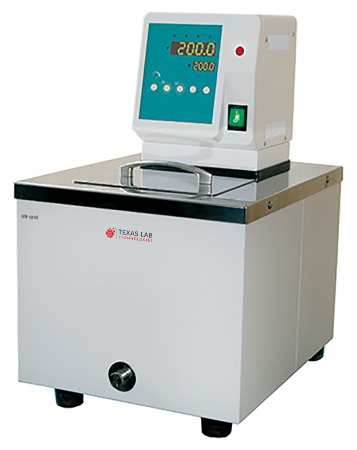

Oil Baths OB-1312-110V
Multi-display(LED), resolution 0.1℃
Temperature control of the external system
PID temperature control
Low noise during the operation
Built-in cooling coil
Alarm setting function for temperature and time
[print_product id = “jQuery (” # post_ID “). Val (); PRODUCT_ID ”mode =” pdf ”text =” DOWNLOAD SAMPLE SHEET ”]
Description
Multi-display(LED), resolution 0.1℃
Temperature control of the external system
PID temperature control
Low noise during the operation
Built-in cooling coil
Alarm setting function for temperature and time
Additional information
| Weight | 16 kg |
|---|---|
| Dimensions | 29 × 35 × 45 cm |
| Model |
OB-1312 |
| Volume |
12L |
| Temperature Range |
Ambient to 300℃ |
| Temperature setting |
0.1℃ |
| Temperature Stability |
±0.02℃ |
| Temperature Uniformity |
±0.1℃ |
| Temperature Controller |
PID temperature control |
| Heat Capacity |
2000 W |
| Pump Capacity Flow rate |
14 L/Min |
| Pressure |
0.6 bar |
| Pump ln/Out |
12.7 Ø |
| Bath opening/Filling bath depth volume |
150×100×195.0 mm |
| Dimensions |
290×350×450 mm |
| Bath Dimensions |
200×300×195.0 mm |
| Weight |
16 kg |
| Interface |
RS232 |
| Electrical Requirement |
110 V |
| Catalog No. |
1003510-1 |
Specifications
Technical Data
