Gradient Thermal Cyclers TC-1110
$4,250.00 ex. VAT
Gradient Thermal Cyclers GTC-2000
$5,000.00 ex. VAT
Gradient Thermal Cyclers TC-1210
$4,250.00 ex. VAT

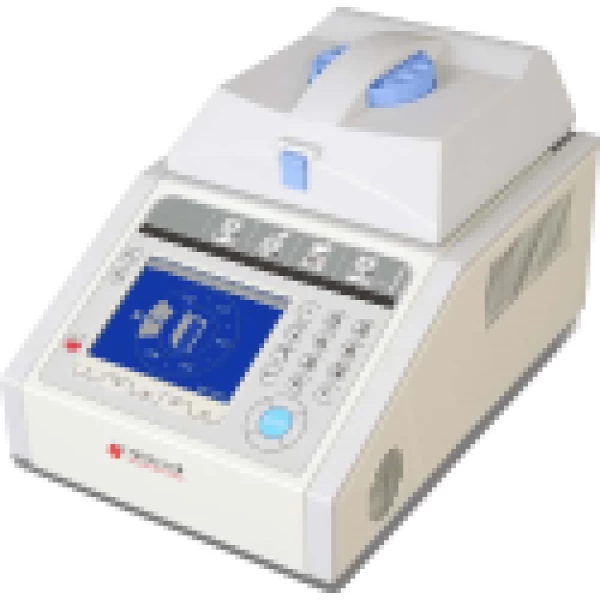

Gradient Thermal Cyclers TC-1210 offers superior performance and a large color touch screen for easy programming. This fully modular platform is able to accommodate different throughput needs with easily interchangeable reaction modules that swap in seconds without tools. Each PCR module has a fully adjustable heated lid that supports a wide range of vessels and sealers, including low-profile and standard-height PCR plates.
Gradient Thermal Cyclers TC-1000 series accommodates 96×0.2 ml, 96×0.2 ml+77×0.5 ml, 54×0.5 ml, 384 well, and this block are completely independently of each other and without interference. Standard Marlow Peltier along with graphical LCD display and responsive color touch screen shortens device processes with an easy to read interface and maximum ramping rate 0.1 to 4.5℃.Semiconductor based technology using advanced Peltier heating units with 6 long service life.
50 in stock
[print_product id = “jQuery (” # post_ID “). Val (); PRODUCT_ID ”mode =” pdf ”text =” DOWNLOAD SAMPLE SHEET ”]
Description
Gradient Thermal Cyclers TC-1210 offers superior performance and a large color touch screen for easy programming. This fully modular platform is able to accommodate different throughput needs with easily interchangeable reaction modules that swap in seconds without tools. Each PCR module has a fully adjustable heated lid that supports a wide range of vessels and sealers, including low-profile and standard-height PCR plates.
Gradient Thermal Cyclers TC-1000 series accommodates 96×0.2 ml, 96×0.2 ml+77×0.5 ml, 54×0.5 ml, 384 well, and this block are completely independently of each other and without interference. Standard Marlow Peltier along with graphical LCD display and responsive color touch screen shortens device processes with an easy to read interface and maximum ramping rate 0.1 to 4.5℃.Semiconductor based technology using advanced Peltier heating units with 6 long service life.
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 39.2 × 26.2 × 25.2 cm |
| Model |
TC-1210 |
| Capacity |
96×0.2 ml + 77×0.5 ml |
| Display |
LCD, Graphical, 5.7 inch，320×240 pixels |
| Temperature Range |
0 to 99.9℃ |
| Number of Programs |
200 |
| Uniformity |
≤±0.3℃ |
| Accuracy |
≤±0.2℃ |
| Resolution |
0.1℃ |
| Number of Cycle |
99 |
| Holding Temperature |
4℃ |
| Temperature Control |
Block/Tube |
| Ramping Rate Adjustable |
0.1 to 4.5℃ |
| Hot Lid Height Adjustable |
Step less Adjustable |
| Hot Lid Temperature |
30 to 110℃ |
| Power consumption |
600 W |
| Overall Dimensions |
392×262×252 mm |
| Net Weight |
10 kg |
| Electrical Requirements |
264 VAC , 50 to 60 Hz |
| Catalogue No. |
620151503 |
Specifications
Technical Data
