Automatic Polarimeter TP-120
$3,890.00 ex. VAT

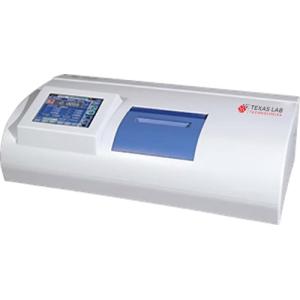

Automatic Polarimeter TP-380
$12,512.00 ex. VAT
Automatic Polarimeter TP-360
$5,630.00 ex. VAT
Automatic Polarimeter TP-360 is designed for use in many applications that require measurement of optical rotation and best suited for custom optical rotation, specific rotation, sugar degree and concentration. Designed with 589.44 nm, 8-inch color dot matrix touch LCD and includes Polarimeters tubes of 100 mm and 200 mm, and a spare sodium lamp, with sample transmittance up to 0.10% and 0.01% range. Better-quality usability with the use of touch screen display. Achieve a high measurement accuracy of up to ± 0.006, ± 0.004 ± 0.003. Automatically prints out Optical rotation, specific rotation, sugar degree, concentration.
Automatic Polarimeter TP-360 is ideal for measurement of rotation of polarization plane and best suited for optical rotation, specific rotation, sugar degree, concentration with accuracy up to ±0.006°C, and ≤0.002°C total repeatability and glass tubes: 100 and 200 mm, 15mm diameter.
100 in stock
[print_product id = “jQuery (” # post_ID “). Val (); PRODUCT_ID ”mode =” pdf ”text =” DOWNLOAD SAMPLE SHEET ”]
Description
Automatic Polarimeter TP-360 is designed for use in many applications that require measurement of optical rotation and best suited for custom optical rotation, specific rotation, sugar degree and concentration. Designed with 589.44 nm, 8-inch color dot matrix touch LCD and includes Polarimeters tubes of 100 mm and 200 mm, and a spare sodium lamp, with sample transmittance up to 0.10% and 0.01% range. Better-quality usability with the use of touch screen display. Achieve a high measurement accuracy of up to ± 0.006, ± 0.004 ± 0.003. Automatically prints out Optical rotation, specific rotation, sugar degree, concentration.
Automatic Polarimeter TP-360 is ideal for measurement of rotation of polarization plane and best suited for optical rotation, specific rotation, sugar degree, concentration with accuracy up to ±0.006°C, and ≤0.002°C total repeatability and glass tubes: 100 and 200 mm, 15mm diameter.
Additional information
| Weight | 36 kg |
|---|---|
| Dimensions | 86 × 51 × 47 cm |
| Model |
TP-360 |
| Wavelength |
589.44 nm (Sodium D Spectrum) |
| Accuracy |
±0.006°C |
| Repeatability |
≤0.002°C |
| Calibration |
Multi-point automatic calibration |
| Frequently Used Methods |
30 |
| Minimum Transmission of Samples |
0.10% |
| Response Speed |
8°C/S |
| Measurement Range |
±90°(Rotation) ±259°Z(Sugar) |
| Measurement Modes |
Optical rotation, specific rotation, sugar degree and concentration (Custom) |
| Source |
LED |
| Display |
8-inch colour dot matrix touch LCD |
| Test Tube |
200/100 mm |
| Dimension |
860×510×470 mm |
| Weight |
36 kg |
| Catalogue No. |
4601505-04 |
Specifications
Technical Data
