Automatic Polarimeter TP-120
$3,890.00 ex. VAT
Automatic Polarimeter TP-380
$12,512.00 ex. VAT

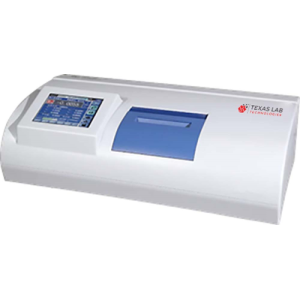

Automatic Polarimeter TP-240
$4,634.00 ex. VAT
Automatic Polarimeter TP-240 is designed for use in many applications that require measurement of optical rotation and best suited for optical rotation, specific rotation, and sugar degree, concentration in pharmaceutical, chemical, foods and research applications.
Designed with 589 nm, color touch screen and includes polarimeter tubes of 100 mm and 200 mm, and a spare sodium lamp, with sample transmittance up to 1% range. Better-quality usability with the use of touch screen display. Achieve a high measurement accuracy of up to ± 0.01. Automatically prints out Optical rotation, specific rotation, sugar degree, concentration.
Automatic Polarimeter TP-240 is ideal for measurement of rotation of polarization plane and best suited for optical rotation, specific rotation, sugar degree, concentration with accuracy up to ±0.01°C, and ≤0.002°C total repeatability and glass tubes: 100 and 200 mm, 15mm diameter.
100 in stock
[print_product id = “jQuery (” # post_ID “). Val (); PRODUCT_ID ”mode =” pdf ”text =” DOWNLOAD SAMPLE SHEET ”]
Description
Automatic Polarimeter TP-240 is designed for use in many applications that require measurement of optical rotation and best suited for optical rotation, specific rotation, and sugar degree, concentration in pharmaceutical, chemical, foods and research applications.
Designed with 589 nm, color touch screen and includes polarimeter tubes of 100 mm and 200 mm, and a spare sodium lamp, with sample transmittance up to 1% range. Better-quality usability with the use of touch screen display. Achieve a high measurement accuracy of up to ± 0.01. Automatically prints out Optical rotation, specific rotation, sugar degree, concentration.
Automatic Polarimeter TP-240 is ideal for measurement of rotation of polarization plane and best suited for optical rotation, specific rotation, sugar degree, concentration with accuracy up to ±0.01°C, and ≤0.002°C total repeatability and glass tubes: 100 and 200 mm, 15mm diameter.
Additional information
| Weight | 48 kg |
|---|---|
| Dimensions | 82 × 50 × 51 cm |
| Model |
TP-240 |
| Wavelength |
589 nm |
| Accuracy |
±0.01°C (-15° ≤optical rotation ≤+15°) |
| Repeatability |
0.002 °C( optical rotation) |
| Measurement Modes |
Optical rotation, specific rotation, sugar degree, concentration |
| Source |
LED + interference filter |
| Display |
Colour Touch Screen |
| Test Tube |
100 mm to 200 mm (regular) |
| Sample Transmittance |
1% |
| Dimension |
820×500×510 mm |
| Weight |
48 kg |
| Catalogue No. |
4601005-04 |
Specifications
Technical Data
